Joist, Beam, Girder

Joists, beams, and girders can be arranged in  three different configurations: joists supported by columns or walls1; joists supported by beams that are supported by columns2; and joists supported by beams, that  are supported by girders, that are supported by columns3.  The relationship between joist, beam, and girder can be either flush or layered framing.  Flush framing, with top of joists, beams, and girders flush with each other, requires less structural depth but may require additional depth for mechanical systems.  Layered framing allows the integration of mechanical systems. With main ducts running between beams and secondary ducts between joists.  Further, flush framing for steel requires more complex joining, with joists welded or bolted into the side of beams to support gravity load. Layered framing with joists on top of beams with simple connection to prevent displacement only

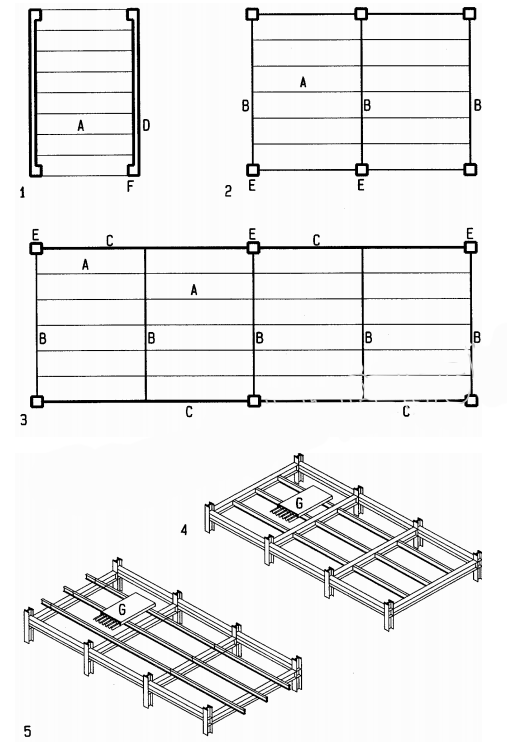

2  Single layer framing: joists supported directly by walls
3  Double layer framing: joists supported by beams and beams by columns
4  Triple layer framing: joists supported by beams, beams by girders, and girders by columns
5  Flush framing: top of joists and beams line up May require additional depth for mechanical ducts
6  Layered framing: joists rest on top of beams Simpler and less costly framing May have main ducts between beams, secondary ducts between joists

A Joists
B Beam
C Girders
D Wall
E Column
F Pilaster
G Concrete slab on corrugated steel deck
